Phosphor Bronze:

Phosphor bronze is also known as 'Tin Bronze' or 'Bronze' is an alloy of copper and tin. The inclusion of Tin increases the corrosion resistance and enhances the strength of the material.

Grade: CW451K (PB102)

Composition: Copper ~95%, Tin ~5%

Key Features:

• High mechanical properties
• Excellent spring properties
• High wear resistance
• Low magnetic permeability

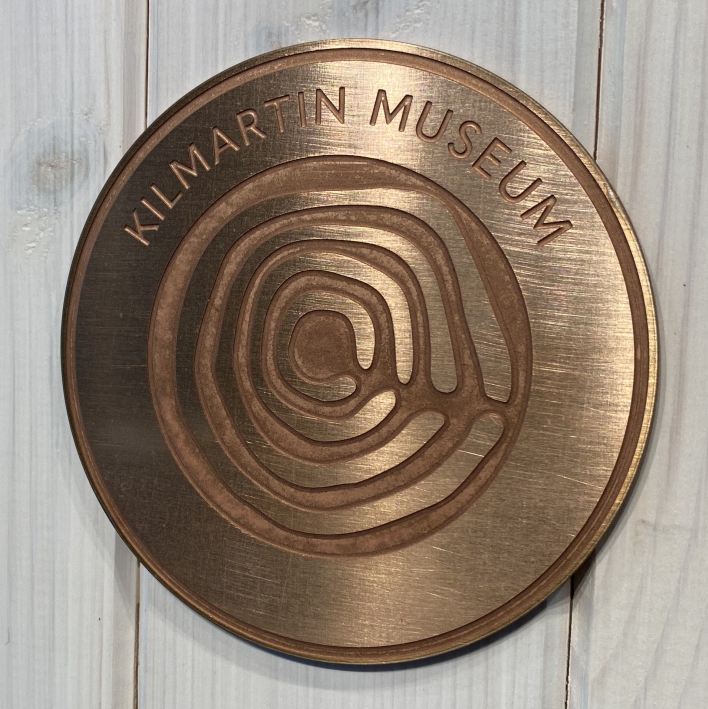

2mm Bronze, combination chemical etch and laser

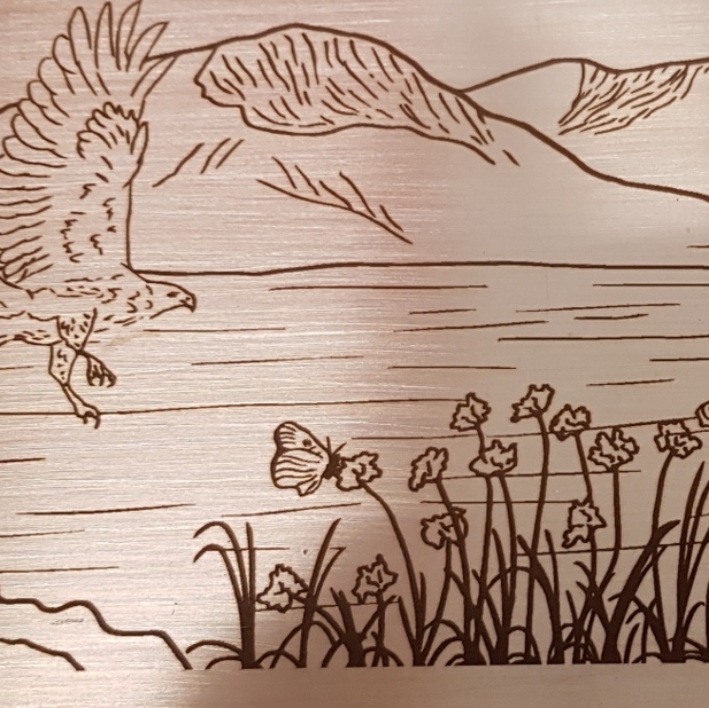

0.4mm Bronze, chemical etch process

Applications

• Electrical and electronic components
• Art and sculpture
• Decorative components
• Signage
• Springs
• Connectors and switches

Chemical Etching

Thicknesses: 0.1mm up to ~0.9mm

Laser Cutting

Thicknesses: 0.4mm up to 4mm

Combination Chemical Etching & Laser

Thicknesses: 0.4mm to 3mm

For current stock thicknesses and maximum artwork areas, please refer to our Metal Stock & Thicknesses page.
